Calling Cloud Run functions from BigQuery to process data using any libraries and services

2025-01-21 gcp terraform

In addition to User-defined functions that can be defined in SQL or JavaScript and Table functions (TVF) that works like views taking parameters, BigQuery has remote functions that, similar to Athena’s UDF, can call Cloud Run and Cloud Run functions (formerly Cloud Functions 2nd gen), allowing you to process data using any library or service.

Implement Athena’s data source connectors and user defined functions (UDF) - sambaiz-net

CREATE FUNCTION (project).(dataset).add(x FLOAT64, y FLOAT64)
RETURNS FLOAT64
LANGUAGE js
AS r"""
  return x+y;
""";

CREATE FUNCTION (project).(dataset).remote_add(x INT64, y INT64)
RETURNS INT64
REMOTE WITH (project).us.my_connection
OPTIONS (
  endpoint = 'ENDPOINT_URL'
)

Implement an API that receives input as calls and returns values as replies.

package remote_add

import (
	"encoding/json"
	"fmt"
	"net/http"

	"github.com/GoogleCloudPlatform/functions-framework-go/functions"
)

func init() {
	functions.HTTP("RemoteAdd", RemoteAdd)
}

func RemoteAdd(w http.ResponseWriter, r *http.Request) {
	var requestData struct {
		Calls [][]int64 `json:"calls"`
	}

	if err := json.NewDecoder(r.Body).Decode(&requestData); err != nil {
		http.Error(w, "Invalid JSON", http.StatusBadRequest)
		return
	}

	replies := make([]int64, 0, len(requestData.Calls))

	for _, call := range requestData.Calls {
		if len(call) != 2 {
			http.Error(w, "Invalid num of args", http.StatusBadRequest)
			return
		}

		replies = append(replies, call[0]+call[1])
	}

	responseData := map[string]interface{}{
		"replies": replies,
	}

	w.Header().Set("Content-Type", "application/json")
	if err := json.NewEncoder(w).Encode(responseData); err != nil {
		http.Error(w, "Failed to encode response", http.StatusInternalServerError)
		return
	}
}

Deploy to the same region as BigQuery.

 $ gcloud functions deploy remote-add-function \
    --gen2 \
    --runtime=go122 \
    --region=us-central1 \
    --source=. \
    --entry-point=RemoteAdd \
    --trigger-http \
    --ingress-settings=internal-only

...
url: https://us-central1-*****.cloudfunctions.net/remote-add-function

Create a google_bigquery_connection and define the function using google_bigquery_routine.

variable "project_id" {
  type = string
}

variable "region" {
  type = string
}

variable "dataset_id" {
  type = string
}

variable "function_endpoint" {
  type = string
}

provider "google" {
  project = var.project_id
  region  = var.region
}

resource "google_bigquery_connection" "my_connection" {
  connection_id = "my_connection"
  location      = "US"
  cloud_resource {}
}

resource "google_bigquery_routine" "remote_function" {
  dataset_id      = var.dataset_id
  routine_id      = "remote_add"
  routine_type    = "SCALAR_FUNCTION"
  definition_body = ""

  arguments {
    name      = "X"
    data_type = "{\"typeKind\": \"INT64\"}"
  }

  arguments {
    name      = "Y"
    data_type = "{\"typeKind\": \"INT64\"}"
  }

  return_type = "{\"typeKind\" :  \"INT64\"}"

  remote_function_options {
    endpoint          = var.function_endpoint
    connection        = google_bigquery_connection.my_connection.name
    max_batching_rows = "10"
  }
}

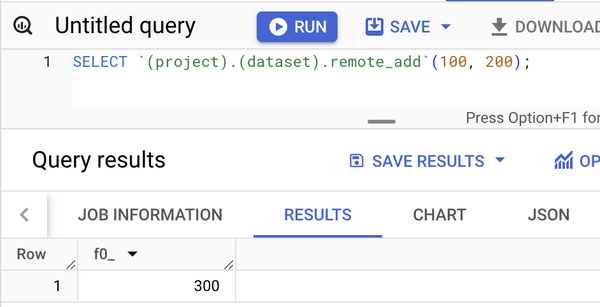

Call the function.
